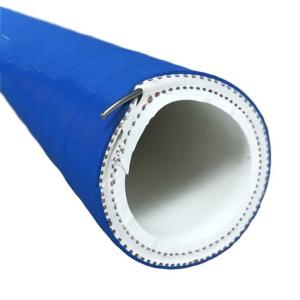

Chemical Hose Pipe Powerful Suction Abrasion Resistance UV Resistance
Hongruntong Marine Chemical Hose
In food and beverage production, chemical hose pipes are used to safely transport acids, cleaning agents, and liquid ingredients. Food-grade PTFE or silicone linings ensure no flavor or odor contamination while providing high resistance to corrosion, heat, and pressure. Flexible designs allow easy installation around equipment and maintain hygiene standards with minimal maintenance.
Hoses can be suction, discharge, or cleaning lines, designed to meet both operational efficiency and food safety regulations.
( Case: A juice processing plant in the United States experienced frequent downtime due to corrosion in cleaning pipelines handling citric acid. Switching to food-grade chemical hoses enabled safe, leak free cleaning cycles.
The hoses improved maneuverability around tanks, reduced clogging, and shortened sanitation time. Plant managers noted enhanced production uptime, lower maintenance costs, and full compliance with food safety regulations, improving overall efficiency and product quality. )
Specifications
| Name | Chemical Hose Pipe |
| Place of Origin | Beijing, China |
| Brand Name | Hongruntong Marine |
| Size | 3/4 - 6 Inch |
| Standard Length | 40 Meters |
| Construction | UHMWPE + EPDM |
| Reinforcement | High Tensile Synthetic Fabric with Double Helix Steel Wire |
| Cover | EPDM |
| Working Pressure | 10-21 Bar |
| Temperature Range | -40℃ - 120℃ |
| Features | 98% Chemical Resistant, Non-Toxic, Odorless, Heat-Resistant, Safe, Environmently Friendly |
| Application | Used Widely in Chemical Industries |
| Model | I.D | O.D | W.P | B.P | Weight | Length |
| mm | inch | mm | bar | psi | bar | psi | kg/m | m |
| HM-CH19 | 19 | 3/4" | 31.2 | 20 | 300 | 60 | 900 | 0.63 | 61 |
| HM-CH25 | 25 | 1" | 37.6 | 20 | 300 | 60 | 900 | 0.78 | 61 |
| HM-CH32 | 32 | 1-1/4" | 46.6 | 20 | 300 | 60 | 900 | 1.21 | 61 |
| HM-CH38 | 38 | 1-1/2" | 53.4 | 20 | 300 | 60 | 900 | 1.40 | 61 |
| HM-CH45 | 45 | 1-3/4" | 60.4 | 20 | 300 | 60 | 900 | 1.61 | 61 |
| HM-CH51 | 51 | 2" | 66.4 | 20 | 300 | 60 | 900 | 1.79 | 61 |
| HM-CH57 | 57 | 2-1/4" | 72.4 | 20 | 300 | 60 | 900 | 1.98 | 61 |
| HM-CH64 | 64 | 2-1/4" | 82.2 | 20 | 300 | 60 | 900 | 2.64 | 61 |
| HM-CH76 | 76 | 3" | 94.2 | 20 | 300 | 60 | 900 | 3.07 | 61 |
| HM-CH102 | 102 | 4" | 121.4 | 20 | 300 | 60 | 900 | 4.40 | 61 |
| HM-CH152 | 152 | 6" | 171 | 20 | 300 | 60 | 900 | 9.17 | 61 |
*Note: Specifications, pressures, colors, etc.can be customized according to requirements.
Key Features
Vibration Absorption
Flexible hoses dampen vibrations from pumps, compressors, or heavy machinery, protecting connections and preventing premature wear or failure.
Compliance with Safety Standards
Manufactured according to ISO, ASTM, and OSHA standards, ensuring safe operation, consistent quality, and adherence to international industrial safety regulations.
Enhanced Flow Efficiency
Smooth internal walls minimize friction and pressure drop, improving transfer rates and reducing energy consumption for pumping systems.
Adaptable to Harsh Environments
Suitable for chemical plants, refineries, pharmaceutical labs, mining operations, dredging projects, and environmental applications where reliability, safety, and performance are critical.
Applications
Laboratories and Research Facilities
Safe transport of reagents, solvents, or hazardous fluids between equipment. Lightweight, flexible hoses allow precise handling and easy installation in confined spaces.
Industrial Cleaning and Sanitation
Chemical hoses deliver cleaning agents, detergents, or disinfectants to machinery, pipelines, or production equipment. Smooth linings reduce residue buildup and simplify maintenance.
Power Plants
Transport of cooling chemicals, acids, or lubricants in power generation systems. Hoses withstand high temperature and pressure, ensuring uninterrupted operations.
Why Choose Hongruntong Marine Chemical Hose?
Long Operational Lifespan
Multilayer construction and high-quality materials provide extended service life, reducing downtime and replacement costs.
Rapid Delivery and Technical Support
With decades of experience, the factory can offer fast production, customization, and professional technical guidance for project-specific solutions.
Versatile Applications Across Industries
Our hoses are used in chemical, pharmaceutical, food & beverage, oil & gas, mining, dredging, environmental, and laboratory projects, proving their adaptability and reliability.
Compliance with International Standards
Manufactured to ISO, ASTM, and OSHA standards, ensuring safety, reliability, and regulatory compliance for global customers.
1. Q: Can chemical hoses handle abrasive fluids?
A: Yes. Hoses with abrasion-resistant outer layers and reinforced inner linings can safely transfer slurry, sediment, and abrasive chemicals without premature wear.
2. Q: Are anti-static chemical hoses available?
A: Yes. Anti-static or conductive hoses prevent static electricity buildup, making them safe for flammable or volatile chemical transfer applications.
3. Q: How should chemical hoses be maintained?
A: Regular inspection for wear, cracks, leaks, and pressure tolerance is recommended. Hoses should be cleaned according to the chemical transferred, avoiding long-term residue buildup.
4. Q: Can chemical hoses be used outdoors?
A: Yes. UV-resistant and weatherproof hoses are designed to withstand sunlight, ozone, rain, and temperature extremes in environmental or field applications.
